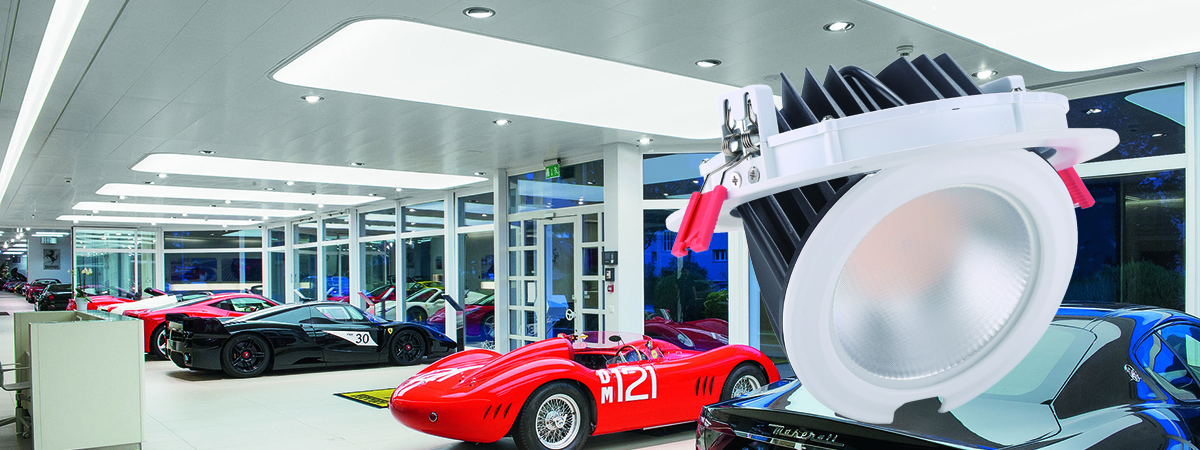

8 Inch 60W Gimbal LED Downlight – SMD01 Series - 20W/28W/38W/48W/60W
With large rotation angle, gimbal led downlight can be used as a classic downlight (with the luminaire head fully recessed) or as a wall washer (with the luminaire head extended). They are extremely flexible as well for providing background and accent lighting. And Triac/ 1-10V/ Dali dimmable/Dali tunable white are optional for all of them.
Product Feature:
-
-
- LED: High efficiency Epistar SMD LED, 120lm/w for whole lighting, CRI>80.
- Driver: Excellent Flicker Free TUV CE, SAA listed Lifud Driver, PF>0.90.
- Cardan joints structure design, Horizontal Rotation 350 Degree and Vertical Rotation 60 Degree.
- Die-casting aluminum heatsink with fins, lifetime more than 50,000 hours.
- Triac / 1-10V / Dali dimmable / Dali dimmable tunable white and emergency versions are optional.
- Certificate: CE/SAA certificates and RoHS compliant;
- Warranty: Five Years.
Technical Data:
| Item No. |
NGE-SMD01-AD20W8 |
NGE-SMD01-AD28W8 |
NGE-SMD01-AD38W8
|
NGE-SMD01-AD50W8
|
NGE-SMD01-AD60W8 |
| Power |
20W |
28W |
38W |
50W |
60W |
| Lumen |
2400lm |
3360lm |
4560lm |
6000lm |
7200lm |
| Size |
φ250*144mm |
| Cutout |
φ210mm-230mm |
| Input Voltage |
AC220~240V, 50~60Hz |
| Power Factor |
>0.95 |
| Light Efficiency |
120lm/w |
| CCT |
3000K/ 4000K/ 5700K |
| CRI |
>80 |
| Beam Angle |
60° |
| Finishing Colors |
White |
| Working Temperature |
-25°C ~+45 °C
|
| Dimmable |
Triac/ 1-10V/ Dali Dimmable |
| Rotatable Sturcture |
60° vertically tiltable and 350° horizontally rotatable |
Applications:
Gimbal LED Downlight is widely used in both general lighting and accent lighting, retails, supermarkets, shops, boutiques, hotels, showroom, lobbies, corridors, etc.
