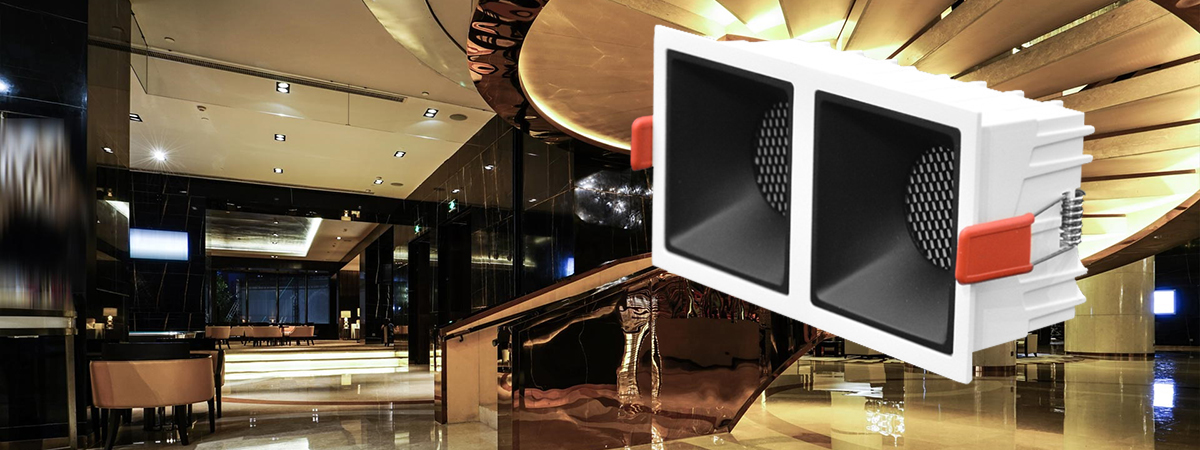

Anti Glare LED Grille Light– COB02 Series – 12W/2×12W/3×12W/4×12W
Anti Glare LED grille light is mainly for general lighting applications. And Triac/ 1-10V/ Dali dimmable/Dali dimmable tunable white are optional for all of them.
Product Feature:
-
-
- LED: High efficiency Bridgelux COB LED, 100lm/w for whole lighting, CRI>80/90.
- Driver: Excellent Flicker Free TUV CE, SAA listed Lifud Driver, PF>0.90.
- Adopt unique reflectors, 15°/ 24°/ 38°/ 55° beam angles, UGR<19.
- Die-casting aluminum heatsink with fins, lifetime more than 50,000 hours.
- Triac / 1-10V / Dali dimmable and emergency versions are optional.
- Certificate: CE/SAA certificates and RoHS compliant;
- Warranty: Five Years.
Technical Data:
Item No. |
NGE-COB02-G12W |
NGE-COB02-G2×12W |
NGE-COB02-G3×12W
|
NGE-COB02-G4×12W
|
Power |
12W |
24W |
36W |
48W |
Lumen |
1200lm |
2400lm |
3600lm
|
4800lm |
Size |
L85*W85mm |
L170*W85mm
|
L255*W85mm
|
L170*W170mm
|
Cutout |
L75*W75mm
|
L162*W75mm
|
L245*W75mm
|
L162*W162mm
|
Input Voltage |
AC220~240V, 50~60Hz |
Power Factor |
>0.95 |
Light Efficiency |
100lm/w |
CCT |
3000K/ 4000K/ 5000K |
CRI |
>80/ 90 |
Beam Angle |
15°/24°/38°/55° |
UGR |
<19 |
Finishing Colors |
Black/ White/ Red |
Reflector Colors
|
Black/ White/ Silver
|
Working Temperature |
-25°C ~+45 °C
|
Dimmable |
Triac/ 1-10V/ Dali Dimmable |
Applications:
Anti glare LED grille light is widely used in supermarkets, shops, boutiques, hotels, showroom, lobbies, corridors, airport and stations etc.
