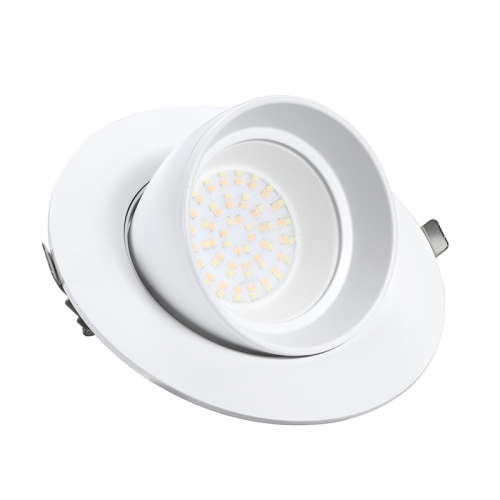

3CCT Selectable Gimbal LED Downlight – SMD02 Series - 20W/28W/38W
With large rotation angle, gimbal led downlight can be used as a classic downlight (with the luminaire head fully recessed) or as a wall washer (with the luminaire head extended). They are extremely flexible as well for providing background and accent lighting. And Triac/ 1-10V/ Dali dimmable/Dali tunable white are optional for all of them.
Product Feature:
-
- LED: High efficiency Epistar SMD LED, 100-110lm/w for whole lighting, CRI>80.
- Driver: Excellent Flicker Free TUV CE, SAA listed Lifud Driver, PF>0.90.
- 3CCT Selectable (3000K-4000K-5700K) and Power Selectable, reduce the Inventories and SKUs.
- Cardan joints structure design, Horizontal Rotation 350 Degree and Vertical Rotation 50 Degree.
- Die-casting aluminum heatsink with fins, lifetime more than 50,000 hours.
- Triac / 1-10V / Dali dimmable / Dali dimmable tunable white and emergency versions are optional.
- Certificate: CE/SAA certificates and RoHS compliant;
- Warranty: Three Years.
Technical Data:
| Item No. |
NGE-SMD02-AD20W |
NGE-SMD02-AD28W |
NGE-SMD02-AD38W |
| Power |
20W |
28W |
38W |
| Lumen |
2200lm |
3080lm |
4180lm |
| Size |
φ195*135mm |
| Cutout |
φ165-185mm |
| Input Voltage |
AC220~240V, 50~60Hz |
| Power Factor |
>0.95 |
| Light Efficiency |
110lm/w |
| CCT |
1-CCT: 3000K/4000K/5700K || 3CCT Selectable: 3000K + 4000K + 5700K |
| CRI |
>80 |
| Beam Angle |
90° |
| Finishing Colors |
White |
| Working Temperature |
-25°C ~+45 °C
|
| Dimmable |
Triac/ 1-10V/ Dali/ Dali Tunable White |
| Rotatable Sturcture |
50° vertically tiltable and 350° horizontally rotatable |
Applications:
Gimbal LED downlight is widely used in both general lighting and accent lighting, retails, supermarkets, shops, boutiques, hotels, showroom, lobbies, corridors, etc.
