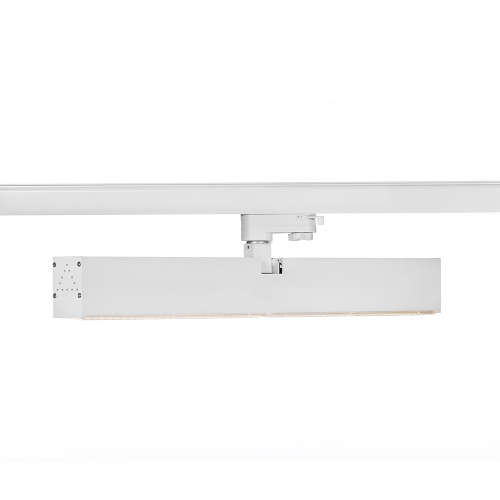

Adjustable LED Linear Track Light - LTL05 Series 120lm/w
Horizontal Adjustable 355° and Vertical Adjustable 90° LED Linear Track Light is perfect to illuminate the goods on the shelves and walls for commercial supermarkets and shops. It is ideal to integrated use between LED track spot lights for commercial applications. It has various beam angles, including 30°/60°/90°/Double 25°/ Asymmetric 18°. And they are suitable for European standard three circuit track system, which is convenient for group control management.
Product Feature:
-
- LED: High efficiency Lumileds 2835 SMD LED, SDCM<5, CRI>80/90.
- Driver: Excellent built-in brands driver with high efficiency, PF>0.90, flicker free.
- Material: aluminum profile heatsink with good heat dissipation, good powder spraying surface treatment.
- Finland LEDIL Optical lens with beam angles 30°/60°/90°/Double 25°/ Asymmetric 18°.
- Horizontal Adjustable 355° and Vertical Adjustable 90°, perfectly to illuminate the goods on the shelves and walls.
- Triac / 0-10V/ Dali dimmable and emergency kits versions are available.
- Included three circuits adapter, compatible with most tracks like GLOBAL, Nordic and POWERGEAR.
- Certificate: CE/SAA certificates and RoHS compliant;
- Warranty: 5 years.
Technical Data:
| Item No. |
NGE-LTL05-40W |
| Size |
L571*W45*H63mm |
| Power |
40W |
| Lumen |
4800lm |
| Input Voltage |
AC220~240V, 50~60Hz
|
| Power Factor |
>0.95
|
| Light Efficiency |
120lm/w
|
| CCT |
3000K/ 4000K/ 5000K/6000K
|
| CRI |
CRI> 80/90
|
| Beam Angle |
30°/60°/90°/Double 25°/ Asymmetric 18°
|
| Finishing Colors |
Black/ White
|
| Dimmable |
Triac/ 0-10V/ Dali Dimmable
|
Adjustable Angle
|
Horizontal Adjustable 355°, Vertical Adjustable 90°
|
Applications:
Adjustable LED Linear Track light is widely used in supermarket, shopping mall, clothing shops, car shop, warehouse, restaurants and Museum.
