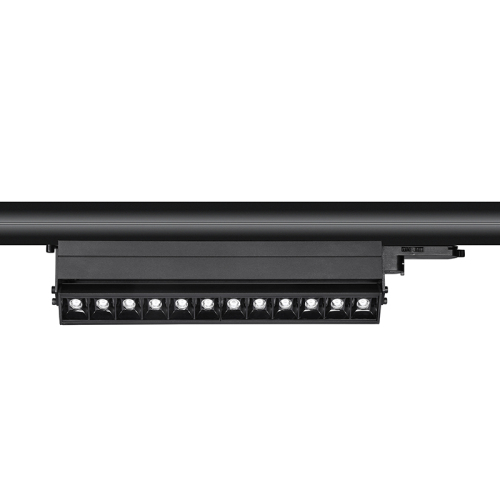

Anti Glare Adjustable LED Linear Track Light - LTL04 Series-Single Type, UGR<9
0-90° wide angles Adjustable LED Linear Track Light is perfect to illuminate the goods on the shelves and walls for commercial supermarkets and shops. It is ideal to integrated use between LED track spot lights for commercial applications. It has various beam angles from 10°/ 24°/ 36°/ 48°/ 10x35°. And they are suitable for European standard three circuit track system, which is convenient for group control management.
Product Feature:
-
- LED: High efficiency Osram 3030 SMD LED, SDCM<5, CRI>80/90.
- Driver: Excellent built-in Tridonic driver with high efficiency, PF>0.90, flicker free.
- Material: die-casting aluminum heatsink with good heat dissipation, good powder spraying surface treatment.
- Honeycomb optic reflector and optic lens with beam angles 10°/ 24°/ 36°/ 48°/ 10x35°.
- Vertical Adjustable from 0° to 90°, perfectly to illuminate the goods on the shelves and walls.
- Single and Double type adjustable linear track light are available for different applications.
- Triac / 0-10V/ Dali dimmable and emergency kits versions are available.
- Included three circuits adapter, compatible with most tracks like GLOBAL, NORDIC and POWERGEAR.
- Certificate: CE/SAA certificates and RoHS compliant;
- Warranty: 5 years.
Technical Data:
| Item No. |
NGE-LTL04-30W |
NGE-LTL04-40W
|
NGE-LTL04-60W
|
| Size |
L405*W40*H93mm |
L565*W40*H93mm
|
L724*W40*H93mm
|
| Power |
30W |
40W
|
60W
|
| Lumen |
2100lm |
2800lm
|
4200lm
|
| Input Voltage |
AC220~240V, 50~60Hz
|
| Power Factor |
>0.95
|
| Light Efficiency |
70lm/w
|
| CCT |
3000K/ 4000K/ 5000K/6000K
|
| CRI |
CRI> 80/90
|
| Beam Angle |
10° / 24° / 36° / 48° / 10x35°
|
| Finishing Colors |
Black/ White
|
| Dimmable |
Triac/ 0-10V/ Dali Dimmable
|
Adjustable Angle
|
Vertical Adjustable from 0° to 90°
|
Applications:
Anti glare adjustable LED Linear Track light is widely used in supermarket, shopping mall, clothing shops, car shop, warehouse, restaurants and Museum.
