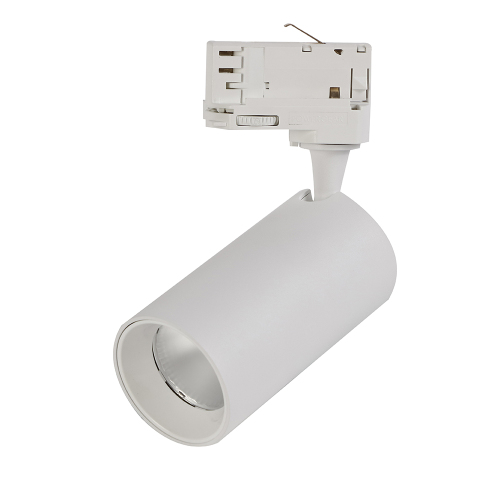

Buil-in LED Track Light - TL01S Series 110lm/w

Item No.: NGE-TL01S
NGE TL01S Series 110lm/w LED Track Light is standard output series track light, UGR<19. With built-in driver design, the TL01S series LED track light is much more simple and beautiful than old track light with external driver box.
Description
Description
Buil-in LED Track Light - TL01S Series 110lm/w



Thanks to the high efficiency COB LED technology, high reflectance optical reflector and deep front ring design, the light efficiency of NGE TL01S Series LED Track Light is up to 110lm/w and UGR<19. As the excellent built-in driver and good heat dissipation ADC12 aluminum heatsink, the lifetime of the track light is above 50,00 hours.

Product Feature:

    •  LED: High efficiency brands COB LED, SDCM<3, CRI>80/90/95/97.
    •  Driver: Excellent built-in driver with high efficiency, PF>0.95, flicker free.
    •  Material: ADC12 aluminum heatsink with good heat dissipation, good powder spraying surface treatment.
    •  Using high reflectance optical reflector, 15°/ 24°/ 38°/ 60° beam angles are optional.
    •  Triac/ 0-10V/ Dali/ DMX / CCT/ RGBW dimming, zoomable and motion sensor versions are available.
    •  Included 3-phase adapter compatible with most tracks like GLOBAL and POWERGEAR.
    •  Certificate: CE/SAA certificates and RoHS compliant;
    •  Warranty: 5 years.




Technical Data:

Item No. NGE-TL01S-D80-10W
NGE-TL01S-D80-20W NGE-TL01S-D80-25W
NGE-TL01S-D85-30W
NGE-TL01S-D90-35W
Size Φ60*L115mm
Φ80*L155mm Φ80*L155mm
Φ85*L170mm
Φ90*L1200mm
Power 10W 20W 25W 30W 35W
Lumen 1100lm 2200lm 2750lm
3300lm
3850lm
Input Voltage   AC220~240V, 50~60Hz
Power Factor   >0.95
Light Efficiency   110lm/w
CCT   2700K/ 3000K/ 4000K/ 5000K
CRI   CRI> 80/90/97
Beam Angle   15°/  24°/ 38°/ 60°
Finishing Colors   Black/ White
Dimmable   Potentiometer/ Triac/ 0-10V/ Dali/ 2.4G/ Bluetooth/ CCT/ RGBW dimming
Rotatable Sturcture   90° vertically tiltable and 350° horizontally rotatable

Applications
:

Built-in LED Track light is widely used in accent lighting, galleries & museums, fashion shops, car shop, supermarket, hotel, restaurants and homes.
