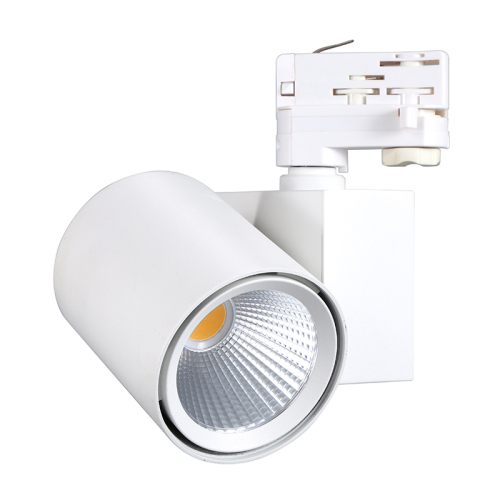

External Driver LED Track Light - TL03H Series, 130lm/w
Thanks to the high efficiency COB LED technology and high reflectance optical reflector, the light efficiency of NGE TL03 Series LED Track Light is up to 130lm/w. The 130lm/w high light efficiency makes the energy saving rate of TL03 series LED track light up to 30% than normal 100lm/w LED track light in the market. As the excellent external driver and good heat dissipation die-casting aluminum heatsink, the lifetime of the track light is above 50,00 hours.
Product Feature:
-
-
- LED: High efficiency Brands COB LED, SDCM<3, CRI>80/90/95.
- Driver: TUV CE/ SAA approved external driver, PF>0.95, flicker free.
- Material: Die-casting aluminum heatsink with good heat dissipation, good powder spraying surface treatment.
- 24°/ 38°/ 60° beam angles high reflectance optical reflector are optional.
- Triac / 0-10V / Dali / DMX / CCT/ RGB dimming, zoomable and motion sensor versions are available.
- Included 3-phase adapter compatible with most tracks like GLOBAL, NORDIC and POWERGEAR.
- Certificate: CE/SAA certificates and RoHS compliant;
- Warranty: 5 years.
Technical Data:
| Item No. |
NGE-TL03H-30W |
NGE-TL03H-35W
|
| Size |
Φ93*L115mm |
Φ93*L115mm
|
| Power |
30W |
35W |
| Lumen |
3900lm |
4550lm
|
| Input Voltage |
AC220~240V, 50~60Hz |
| Power Factor |
>0.95 |
| Light Efficiency |
130lm/w |
| CCT |
2700K/ 3000K/ 4000K/ 5000K |
| CRI |
CRI> 80/90/97 |
| Beam Angle |
20°/ 30°/ 45°/ 60° |
| Finishing Colors |
Black/ White |
| Dimmable |
Potentiometer/ Triac/ 0-10V/ Dali/ 2.4G/ Bluetooth/ CCT/ RGBW dimming |
| Rotatable Sturcture |
90° vertically tiltable and 350° horizontally rotatable |
Applications:
External driver LED Track spot light is widely used in accent lighting, galleries & museums, fashion shops, car shop, supermarket, hotel, restaurants and homes.
