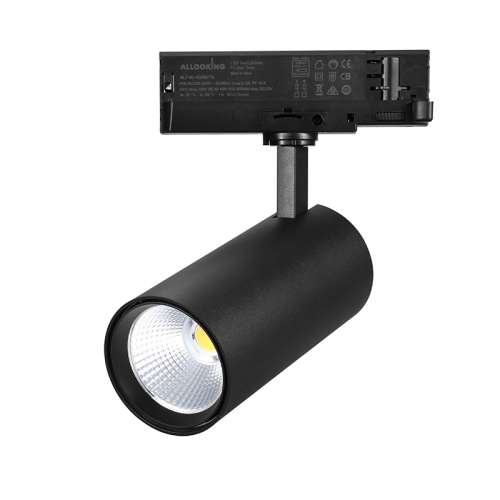

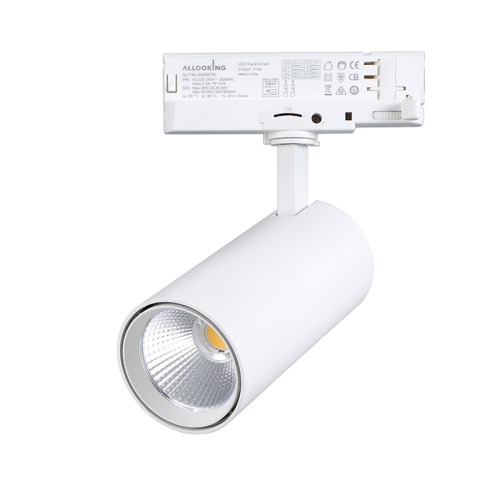

In-Track LED Tracklight - TL02B Series 130lm/w

Item No.: NGE-TL02B
NGE TL02B Series 130lm/w LED Tracklight is high lumen output LED tracklight with In-track driver. With Driver integrated the adapter, the In-track LED tracklight is much more compact and fashionable than old track light with external driver box.
Description
Description
In-track LED Tracklight - TL02B Series, 130lm/w



Thanks to the high efficiency COB LED technology and high reflectance optical reflector, the light efficiency of NGE TL02B Series LED Tracklight is up to 130lm/w. The 130lm/w high light efficiency makes the energy saving rate of TL02A series LED track light up to 30% than normal 100lm/w LED track light in the market. As the excellent in-track driver and good heat dissipation die-casting aluminum heatsink, the lifetime of the track light is above 50,00 hours.

Product Feature:
1. LED: High efficiency Bridgelux COB LED, SDCM<3, CRI>80/90/95.
2. Driver: Osram/Allooking/KGP in-track driver integrated with adapter, easy to replace, PF>0.95, flicker free.
3. Material: Die-casting aluminum heatsink with good heat dissipation, good powder spraying surface treatment.
4. 24°/ 38° beam angles high reflectance optical reflector are optional.
5. Triac / 0-10V / Dali / DMX / CCT/ RGBW dimming, zoomable and motion sensor versions are available.
6. Included 3-phase adapter compatible with most tracks like GLOBAL, NORDIC and POWERGEAR.
7. Certificate: CE/SAA certificates and RoHS compliant;
8. Warranty: 5 years.



Technical Data:
Item No. NGE-TL02B-D65-20W NGE-TL02B-D75-30W
NGE-TL02B-D85-35W
Size Φ65*L130mm Φ75*L160mm
Φ85*L160mm
Power 20W 30W 35W
Lumen 2600lm 3600lm 4550lm
Input Voltage AC220~240V, 50~60Hz
Power Factor >0.95
Light Efficiency 130lm/w
CCT 2700K/ 3000K/ 4000K/ 5000K
CRI CRI> 80/90/97
Beam Angle 24°/ 38°
Finishing Colors Black/ White
Dimmable Potentiometer/ Triac/ 0-10V/ Dali/ 2.4G/ Bluetooth/ CCT/ RGBW dimming
Rotatable Sturcture 90° vertically tiltable and 350° horizontally rotatable

Applications
:
In-track LED Tracklight is widely used in accent lighting, galleries & museums, fashion shops, car shop, supermarket, hotel, restaurants and homes.
